Penske Racing Shocks General Manager, Aaron Lambert, walks through theSpring Curve Calculator tooland provides tips on how to best use it.
Spring Calculator Overview
The Excel spreadsheet document has two tabs per corner of the car:
Analysis (Run Comp tabs) - show your spring curve and allows you to easily and visually compare packages.
Entry Library (Run Entries tabs) - where you enter your data
On the second tab for each corner:
Enter your ride height, travel numbers, and spring loads into the top cells
Label track name + car corner in the Run/Event column
Add notes like baseline outing, spring pounds, with XX bump, etc.
Enter other test information as before in a new row
Go to the Analysis tab (Run Comp tab) for the corner you are working on and select the options you want to compare from the dropdown. This will populate the graph to see what it really did.
Run as many spring combinations as you want and save your work:
Make sure to save it somewhere you can find it! Save as you go!
Can transfer with a USB stick
RECOMMENDATION: Keep what you don’t like in your files too!
Please note:
You will need Excel to be able to use this program.
The document comes pre-loaded with some sample data to show how the graph works but should be replaced with your data.

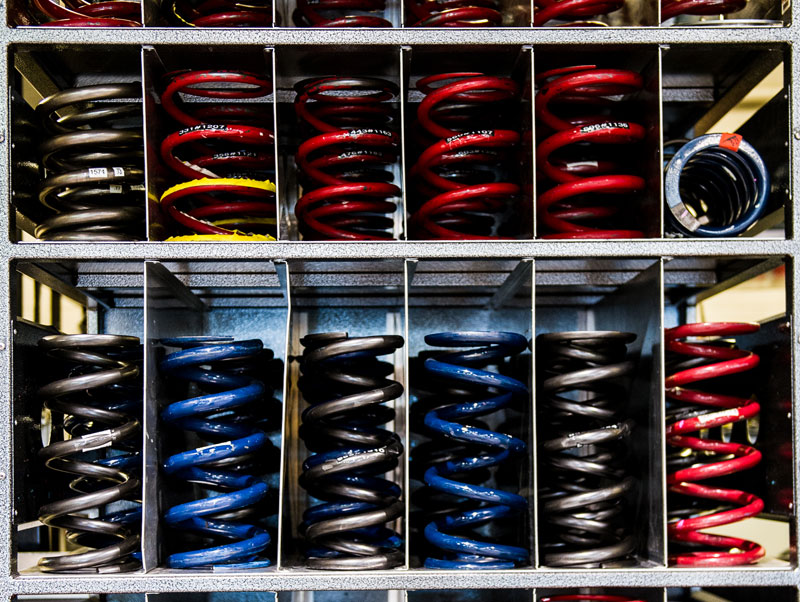

Sign up for S3, and a PRS Shock Specialist can help with this even more over the phone or at-track. (Did you know that our shock specialists usually travel with 200 springs?!)
